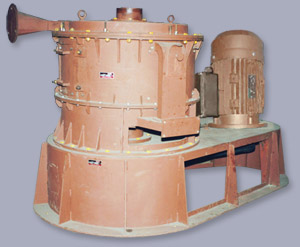

 AIR ATTRITION MILL (also known as ULTRAFINE GRINDER)

Working Principle:

Air Attrition Mill, Ultrafine Grinder

The Distinctive Principle of ULTRAFINE GRINDER is based on a high Air throughput in the Grinding area. This high Amount of Air is converted in to A Tremendous Turbulence by the Rotating & Stationary parts of the Machine as well as by an appropriate Guidance of the Air stream in the Mill.

The numerous Air Whirls in the Grinding chambers accelerate the Product up to the High Velocity of the Air. The Direction & The Speed of the particles is suddenly changed within extremely short periods. As a result of this principle the particles crash against each other so reaching a careful disintegration in high Air stream. A small percentage of grinding taking place by in pact with the rotating or stationary part of the Mill.. The Creation of numerous air whirls in the single grinding chamber their increased turbulence by the inner grooved liner & the pulsation of the high air velocity make it Micronics.

Simple adjustment to the machine allow a narrow distribution range of out put particle our wet, Dry, Fibrous or Heat Sensitive materials.

Operation (Maintenance - Installation):

No Foundation, Mechanically simple & Robust, operation & maintenance, No specialized personnel, Pneumatic Conveying of the Grind Product over 30-40 H height.

PRODUCTS CURRENTLY BEING GROUND
Grinder for Powders
Tyre Rubber
Wheat-Whole Atta Grinding
Pharmaceuticals
Carbon Block
Carbonate
Wood Flour Grinding
Grinding of Cosmetic
Sugar
Dextrose
Polypropylene
Bentonite
Cocoa Press
Pigment Grinding
Polyesters
Grinder for Guar Gum
Adhesives
Grinder for Asphalt
Tamarind Flour
Grinder for Dyes
Chemicals
Chicory
Clays
Grinding of Psyllium
Cereal & Other
Milling Product
Salt
Animal Feeding Stuff Grinder
Talc
Calcium
Fish Grinding

Standard Models:

Vertical Type , Three Part.

Model
H.P
Cap- Kg/Hour
Wheat
Guar
T-5
5-10
150
10
T-15
15-30
400
40
T-25
50-75
800
80
T-50
75-100
1500
150
T-100
100-120
2000
200
T-110
120-180
2500
250
T-200
200-250
5000
500
